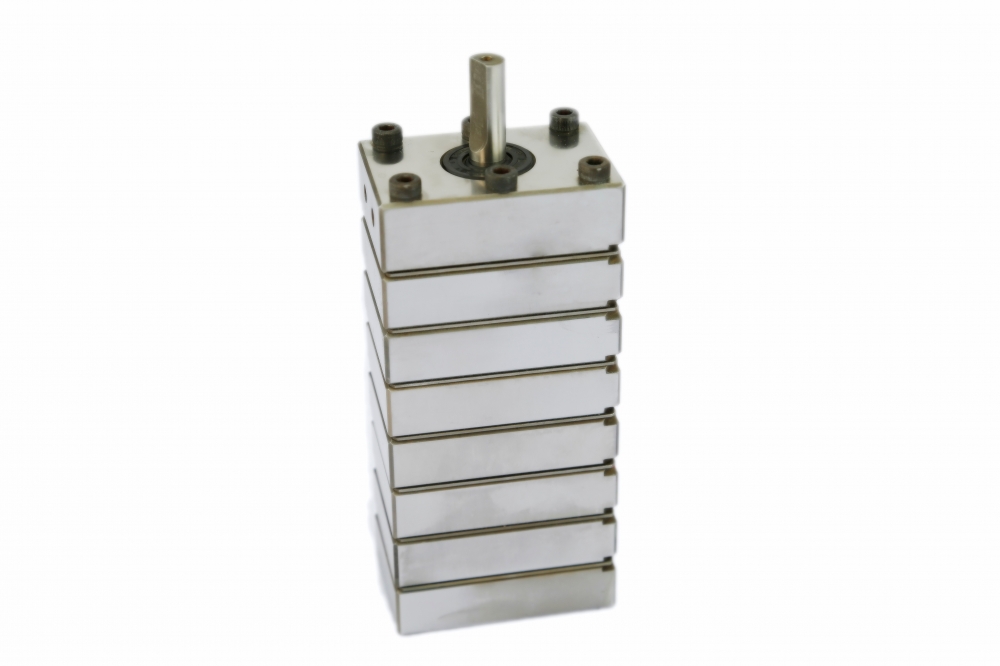

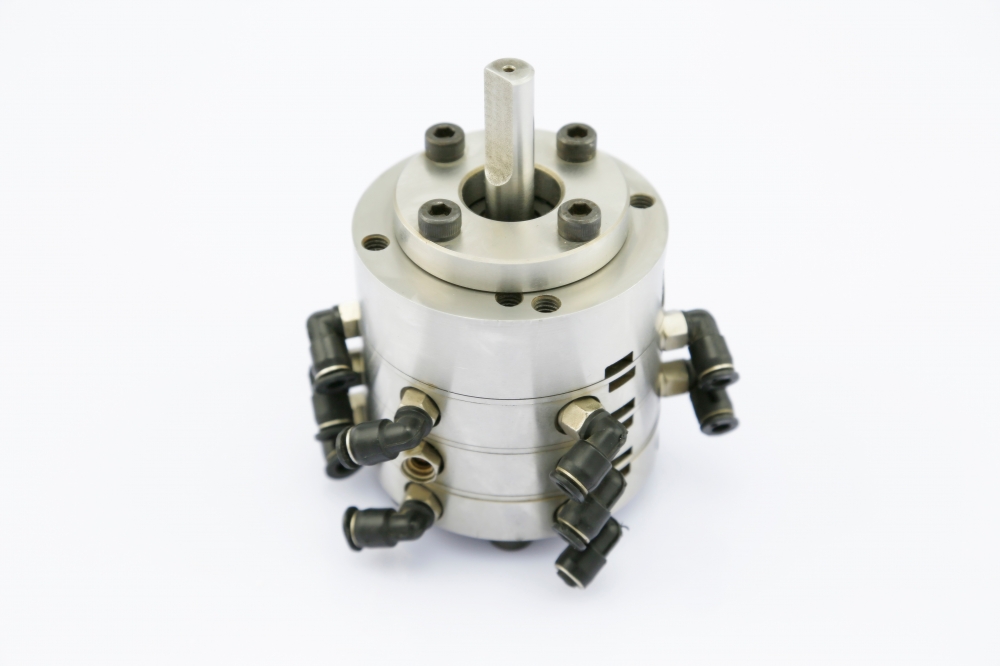

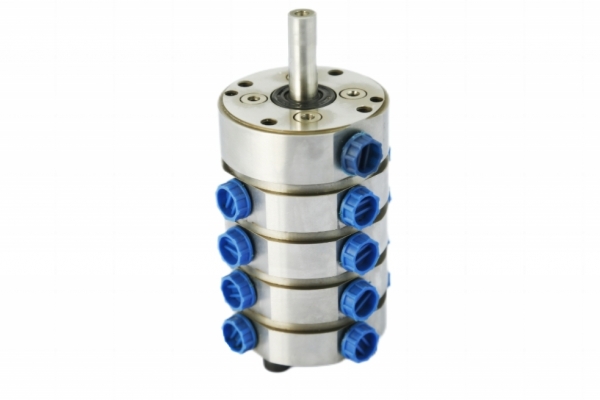

MP-Y Spinning Oil Pump

The spinning oil pump is a series of multi-layer external gear pumps, which convey auxiliary materials on the production line of nylon and polyester filament....
 High precision
 The transmission fluctuation is small

ONLINE CHAT

DETAILS
CONFIGURATION
RELATED
FAQS
LEAVE MESSAGE

DETAILS

The spinning oil pump is a series of multi-layer external gear pumps, which conveys auxiliary materials on the production line of nylon and polyester filaments, and adds spinning oil (such as antistatic agents, emulsifiers, lubricants, etc.) to synthetic fibers evenly and quantitatively to improve the quality of synthetic fibers. Spinning oil pump product category code Y, using high-precision gears, less clearance fit, multiple gear pairs of meshing step output is high, transmission fluctuation is small, and the output material is uniform.

The Melt Pump Selection Table is arranged in the order of use of polymer and spinning production processes:

Main line: kettle bottom pump - pipeline booster pump - spinning metering pump

Deputy Supervisor Road: Spinning Oil Pump

CONFIGURATION

Pump body	High temperature tool steel, stainless steel, chromium-nickel alloy steel
cogs	Nitriding steel, stainless steel, special tool steel, straight or helical tooth
Gear shafts	Tool steel, titanium alloy , silver-nickel alloy
Number of imports	1
Number of exports	2 -24
Displacement range per port	0.6cc/ r ~ 30cc/ r
Outlet pressure	0. 1MPa
Operating temperature	<50℃

series	peculiarity	Model	Number of imports	Number of exports	Displacement range per port	Working speed	Working conditions
			Number of imports	Number of exports	Displacement range per port	Working speed	Outlet pressure	Operating temperature
			个	个	cc/ r	RPM	Mpa	℃
MP-Y	Small displacement	Y1A	1	2 - 16	0.06-0.16	10-60	0.1	<50
	Small displacement	Y1B	1	4 -24	0.05-0.16	10-60	0.1	<50
	Large displacement	Y2A	1	2 - 16	4-6.5	10-60	0.1	<50
	Large displacement	Y2B	1	2	10-30	10-60	0.1	<50
