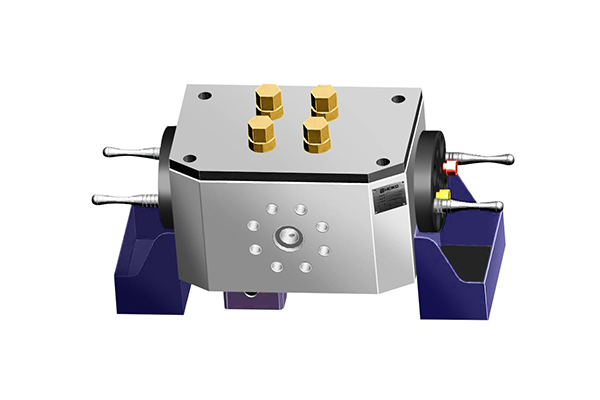

Manual backwash screen changer

The self-cleaning, reusable filter element and does not stop production when changing the filter element, and has a high degree of stability during extrusion operation...
 The equipment is stable and reliable, and the structure is simple
 There is no need for auxiliary hydraulics and control cabinets
 It supports any filtration precision, and the working pressure value can reach 4 0 MPa

Screen-Changer

ONLINE CHAT

DETAILS
CONFIGURATION
RELATED
FAQS
LEAVE MESSAGE

DETAILS

Working principle: HK-SDFX series screen changer is a self-cleaning, reusable filter element, and does not stop the production when replacing the filter element, and has high stability during extrusion operation. There are two parallel filter units inside, which can be automatically cleaned one by one, and when one of the filter components is cleaning, the other filter unit is normally involved in the filtration work. The equipment is simple to maintain, replace the filter element regularly, and replace the filter screen after multiple cleaning.

Scope of application: used in continuous production, self-cleaning, filtration area up to 1 0 3 6 cm ², very suitable for low-pollution materials, according to the different accuracy of the filter screen, the maximum output can reach 1 4 0 0 kg / h, can process materials: BOPP, BOP ET, PE, PP, ABS, PET, N, PA, PS, etc. Products applied: cast film, blown film, wire drawing, non-woven fabrics, spunbond, wire and cable, pipe, etc.

CONFIGURATION

TYPE	output kg/h	filter ar ea (C㎡ )	scr een size	heating power
HK-SDFX15	≤240	92*2	φ45*65	3.5
HK-SDFX25	≤350	133*2	φ50*85	4.55
HK-SDFX35	≤580	215*2	φ65* 106	7
HK-SDFX50	≤950	349*2	φ65* 130	10.5
HK-SDFX65	≤1400	518*2	φ110* 150	30.1
