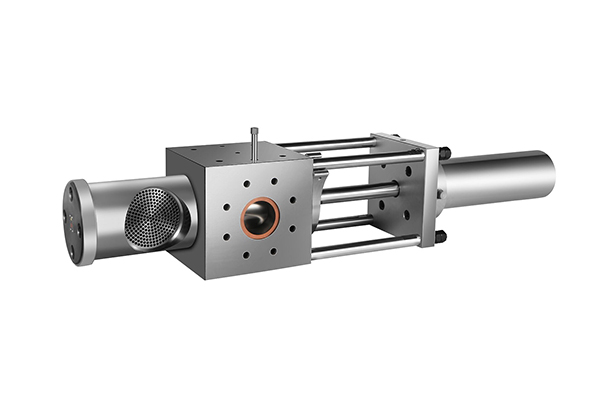

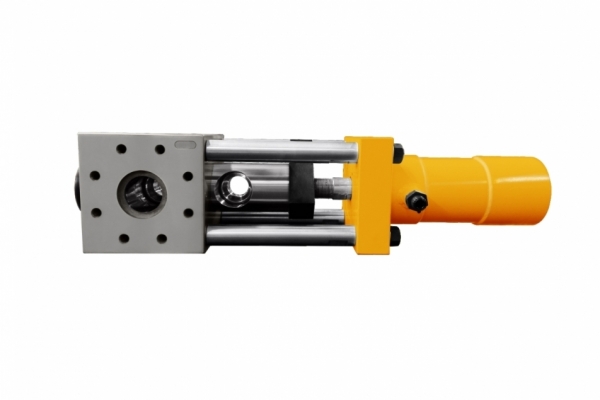

The single-column screen changer with integral cylindrical screen changer is made of high-temperature alloy steel, which has good performance in high temperature resistance and pressure resistance....
High temperature and high temperature resistance
The two filter channels work alternately
Lead-in exhaust structure
Non-stop network change
The single-column screen changer has an integral cylindrical screen changer, which has the characteristics of high temperature resistance and high pressure resistance, and is made of high-temperature alloy steel, which has good performance in high temperature resistance and pressure bearing, and has double filter channels to work alternately, which is quick and easy to produce and maintain. It has a highly wear-resistant, high-precision filter design. In the case of pressure 30-50MPa and temperature 300-400°C, it will not affect its performance. It is designed with a material introduction and exhaust structure, which constantly changes the net without leakage and without interrupting production. It can ensure that the product is continuous when changing the screen.
The single-column double-station screen changer is suitable for the production of high-pressure products, especially for almost all thermoplastics such as blown film, cast film, double-wire drawing and granulation.

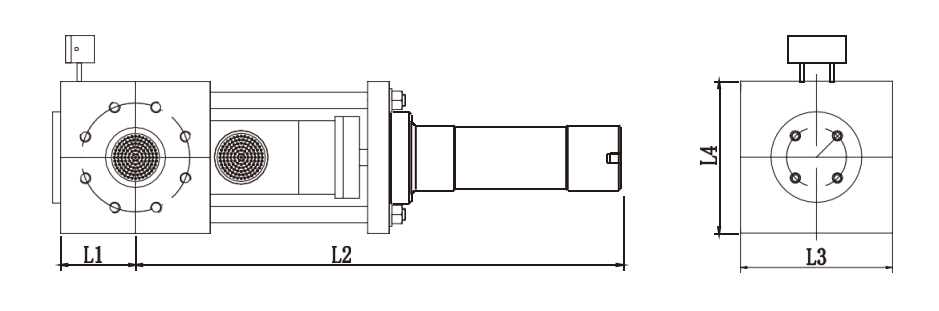

type | output | size (mm) | screen size | Heating tube | ||||||
kg/h | L1 | L2 | L3 | L4 | diameter (mm) | area (cm²) | quantity | voltage (v) | Heating power (w) | |
HK-SP-R-100 | 50~150 | 100 | 700 | 180 | 180 | Ф80 | 50 | 4 | 230/400 | 500/800 |
HK-SP-R-120 | 100~260 | 110 | 730 | 210 | 210 | Ф100 | 78 | 4 | 230/400 | 600/1000 |
HK-SP-R-145 | 200~380 | 125 | 800 | 240 | 240 | Ф125 | 123 | 4 | 230/400 | 700/1200 |
HK-SP-R-170 | 290~600 | 135 | 860 | 260 | 260 | Ф150 | 177 | 4 | 230/400 | 1000/1600 |
HK-SP-R-195 | 400~820 | 150 | 960 | 300 | 300 | Ф175 | 240 | 4 | 230/400 | 1600/2000 |
HK-SP-R-220 | 600~1300 | 160 | 1150 | 330 | 330 | Ф200 | 314 | 8 | 230/400 | 1000/1400 |
HK-SP-R-250 | 800~2000 | 180 | 1250 | 380 | 380 | Ф230 | 415 | 8 | 230/400 | 1600/2000 |

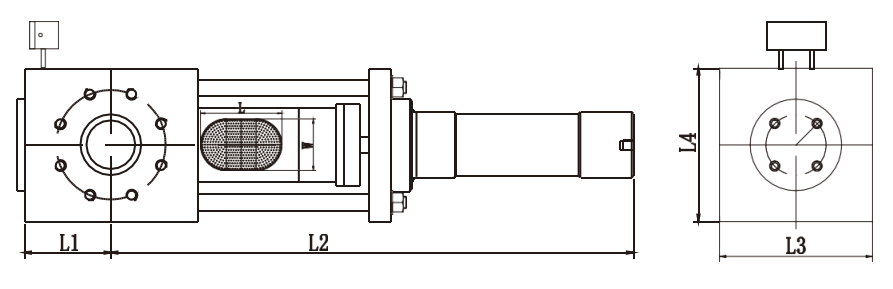

type | output | size (mm) | screen size | Heating tube | ||||||
kg/h | Ll | L2 | L3 | L4 | size (mm) | area (cm²) | quantity | voltage (V) | Heating power (w) | |
HK-SP-E-120 | 180~450 | 130 | 870 | 210 | 210 | 100x145 | 124 | 4 | 230/400 | 800/1200 |
HK-SP-B-145 | 280~600 | 145 | 900 | 240 | 240 | 125x170 | 179 | 4 | 230/400 | 900/1500 |
HK-SP-E-170 | 600~1300 | 185 | 1100 | 260 | 260 | 150x230 | 296 | 4 | 230/400 | 1600/2200 |
HK-SP-E-195 | 790~2500 | 200 | 1200 | 300 | 300 | 175x270 | 406 | 4 | 230/400 | 2300/3000 |
HK-SP-E-220 | 990~3500 | 215 | 1300 | 330 | 330 | 200x300 | 514 | 8 | 230/400 | 2000/2500 |
HK-SP-E-250 | 1570~4600 | 220 | 1350 | 380 | 380 | 230x310 | 600 | 8 | 230/400 | 2000/2500 |
HK-SP-E-270 | 1950~6000 | 240 | 1450 | 410 | 410 | 250x345 | 737 | 8 | 230/400 | 2500/3000 |
Note: The actual output depends on material fowability fiter fineness and material purity. Specfications are subject to chang withtout por otice
