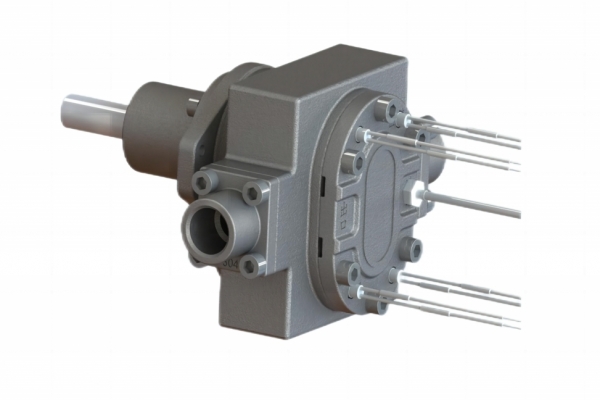

MP-JDK Electrically heated gear pump

DETAILS

K series is an electrically heated precision casting shell D-sleeve structure, the biggest feature of the pump is that the pump body is heated by an electric heating rod, good heating convenience, accurate transportation of materials that need to be heated and conveyed, and the precision casting shell makes the structure light and economical.

CONFIGURATION

pressure	<30Bar
rotate speed	<1000r/min
viscosity	<100000Cps
temperature	-10-300℃
Vacuum	-0.98Bar
Pump casing material	304.316L
Shaft material	440C，2205，2507
seal	Mechanical seals, packing seals, magnetic seals
D-sleeve material	440C, Cr12, graphite, silicon carbide
Static sealing	Fluoroelastomer, perfluoroese, pertetrafluoro
Typical Applications	Paraffin, asphalt, paint, hot melt adhesive, high viscosity resin, polyurethane.

RELATEDView All +

Product Name	S/N	Model	Sealing method	Structure	Pressure(bar)	Rotating speed(r/min)	Viscosity(CPS)	Temperature(°C)	Features
MP-JBB High-speed gear metering pump	MP-JB	B	Mechanical seals, packing seals, magnetic seals	Friction plate structure	<30	<1500	<1000	0-90	General purpose pumps
MP-JBS High-speed gear transfer pump	MP-JB	S	Mechanical seals, packing seals, magnetic seals	Double-brace structure	<30	<1500	<1000	0-90	Easy to clean
MP-JDD High viscosity high vacuum gear pump	MP-JD	D	Mechanical seals, packing seals, magnetic seals	D-sleeve structure pumps	<100	<1000	<100000	-10-200	High viscosity and high vacuum
MP-JDE Insulated jacketed gear pump	MP-JD	E	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<100	<1000	<100000	-10-300	Heat medium heating, heat preservation
MP-JDK Electrically heated gear pump	MP-JD	K	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<30	<1000	<100000	-10-300	The electric heating rod heats up and is lightweight
MP-JDF Gear pump for barrels	MP-JD	F	Mechanical seals, packing seals, magnetic seals	Dedicated to barreled materials	<100	<600	<100000	-18-200	High viscosity
MP-JZB High-speed gear metering pump	MP-JZ	B	Mechanical seals, packing seals, magnetic seals	Friction plate structure	<30	<1500	<10000	0-90	Bearings made of self-lubricating material
MP-JZD High viscosity gear metering pump	MP-JZ	D	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<30	<1500	<30000	0-90	High viscosity
MP-JZS High abrasive gear metering pump	MP-JZ	S	Mechanical seals, packing seals, magnetic seals	Double-brace structure	<30	<1000	<30000	0-90	High abrasion
MP-JZE Insulated gear metering pump	MP-JZ	E	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<100	<1000	<100000	-10-300	Heat medium heating, heat preservation
