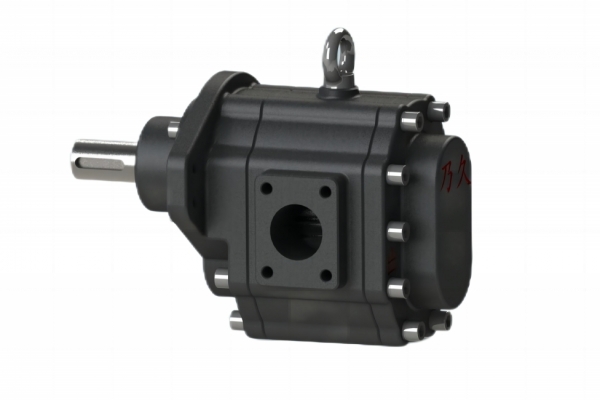

MP-JZB High-speed gear metering pump

DETAILS

MP-JZB series gear metering pump, cast iron general-purpose metering pump has good fluid compatibility, in non-corrosive fluids to you and has good performance, its typical characteristics are, the friction plate structure on the side of the gear, the internal bearing is a self-lubricating material bearing, has a good performance in the medium environment with a certain lubrication.

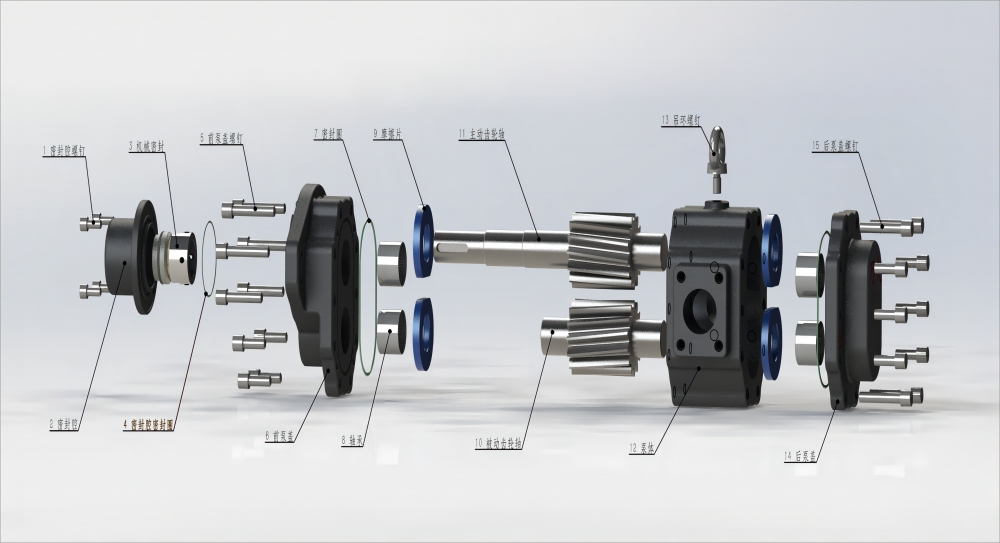

HZB爆炸图

CONFIGURATION

pressure	<30Bar
rotate speed	<1500r/min
viscosity	<10000Cps
temperature	0-90℃
Pump casing material	QT400，QT500，QT600，HT200
Shaft material	20CrMoTi, 38CrMoAl, 440C, high chromium resistant steel
seal	Mechanical seals, packing seals, magnetic seals
Static sealing	Fluoroelastomer, perfluoroese, tetrafluoro, pertetrafluoro
Typical Applications	Crude oil, lubricating oil, hydraulic oil, mechanical oil, butter polyurethane, isocyanate, epoxy, stearic acid, rosin, MDI

RELATEDView All +

Product Name	S/N	Model	Sealing method	Structure	Pressure(bar)	Rotating speed(r/min)	Viscosity(CPS)	Temperature(°C)	Features
MP-JBB High-speed gear metering pump	MP-JB	B	Mechanical seals, packing seals, magnetic seals	Friction plate structure	<30	<1500	<1000	0-90	General purpose pumps
MP-JBS High-speed gear transfer pump	MP-JB	S	Mechanical seals, packing seals, magnetic seals	Double-brace structure	<30	<1500	<1000	0-90	Easy to clean
MP-JDD High viscosity high vacuum gear pump	MP-JD	D	Mechanical seals, packing seals, magnetic seals	D-sleeve structure pumps	<100	<1000	<100000	-10-200	High viscosity and high vacuum
MP-JDE Insulated jacketed gear pump	MP-JD	E	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<100	<1000	<100000	-10-300	Heat medium heating, heat preservation
MP-JDK Electrically heated gear pump	MP-JD	K	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<30	<1000	<100000	-10-300	The electric heating rod heats up and is lightweight
MP-JDF Gear pump for barrels	MP-JD	F	Mechanical seals, packing seals, magnetic seals	Dedicated to barreled materials	<100	<600	<100000	-18-200	High viscosity
MP-JZB High-speed gear metering pump	MP-JZ	B	Mechanical seals, packing seals, magnetic seals	Friction plate structure	<30	<1500	<10000	0-90	Bearings made of self-lubricating material
MP-JZD High viscosity gear metering pump	MP-JZ	D	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<30	<1500	<30000	0-90	High viscosity
MP-JZS High abrasive gear metering pump	MP-JZ	S	Mechanical seals, packing seals, magnetic seals	Double-brace structure	<30	<1000	<30000	0-90	High abrasion
MP-JZE Insulated gear metering pump	MP-JZ	E	Mechanical seals, packing seals, magnetic seals	D-sleeve construction	<100	<1000	<100000	-10-300	Heat medium heating, heat preservation

FAQS

How to choose a good melt pump？

The melt pump can be said to be a relatively large-scale mechanical equipment, so the general purchase price is relatively expensive. Therefore, users are very cautious when purchasing and want to choose a well-known manufacturer and good brand to purchase. Today's machinery manufacturing market is a mixed bag. There are many names for the same equipment, and the manufacturer's brands are also different. Users are also confused about which one is......
5 major issues affecting the life of melt pumps

Melt pumps have the advantages of compact structure, simple manufacturing process, low cost, and insensitivity to oil contamination, and are widely used. However, due to defects or improper maintenance in manufacturing, assembly, operation, and maintenance, the pump will often be damaged prematurely or even scrapped, causing the actual service life of the pump to fail to meet the design requirements. The main influencing factors are analyzed as f......
The function and working principle of melt metering pump

The melt metering pump is mainly installed at the outlet of the extruder for metering and pressurizing various melts. The advantages of the melt metering pump are safe and reliable operation, stable performance, long service life and low operating costs. The extruder melt metering pump is a positive displacement pump, and different materials can be selected to meet the needs of transporting different melts; the model size of the melt metering pum......
Flow and displacement knowledge of melt pump

Theoretical displacement of melt pumpThe volume of melt discharged per revolution is called the theoretical displacement of the melt pump, or pump displacement, and its unit is cc/r or cm³/r. The specifications of melt pumps are generally expressed in terms of displacement.Theoretical flow rate of melt pumpIgnoring the influence of leakage, the unit calculated based on the geometric dimensions of the melt pump, the melt flowing through the melt p......
